Royal Exclusiv Red Dragon® 3 Supersilence 50 Watt / 4,5m³:-

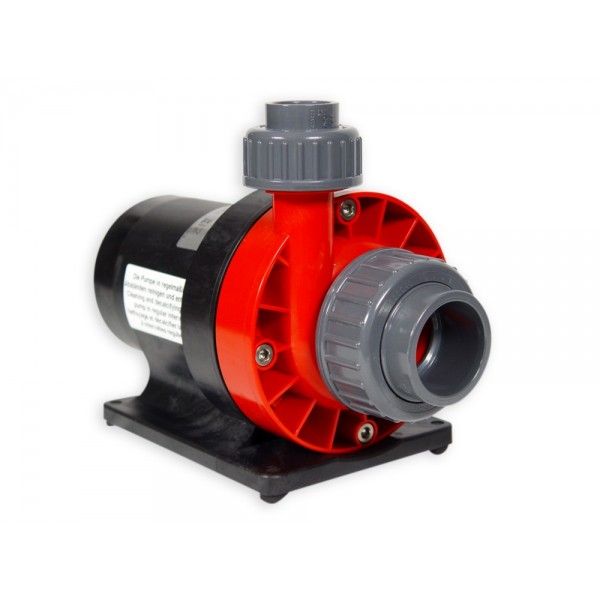

Red Dragon^® 3 Pump 4500 SuperSilence 50 Watt / 4,5m³

Technical data Red Dragon^® 3  4500 SuperSilence Pump 4,5 m³:
4.500 Liter/h
50 Watt/h  2,5 mtr. pressure height
non-speed adjustable Brushless DC pump
intake side 40 mm - pressure side 25 mm
operating voltage: 230 Volt 50 Hz  (also in 110V/60Hz available)
Protection class: IP 68 (submersible pump)
Weight pump: 4,1 kg
Height of intake side: center 70 mm
Dimension pump: 130 mm wide / 235 mm length / ~ 190 mm height

  Data_sheet_and_spare_parts.pdf     Operating_and_maintenance_manual.pdf

• Saltwater resistant M6 grade 2 titanium screws
• Saltwater resistant parabolic rubber feet for acoustic decoupling
• Extreme low noise brushless dc-delivery pump with grouted power electronics
• High efficient technology "Made in Germany"
• Inlet and Outlet complete with DIN connection, compact dimensions
• High performance ceramics bearings and hollow shaft for bypass purging in the rotor housing
• Only saltwater resistant pump with titanium rotor, titanium stator and shrivelled bearings
• Easy usage and maintenance. Low risk of calcification due to polished titanium parts and compulsory purgeing
• Heavy and massive craftsmanship against vibrations and oscillation
• CE conformity, developed and built according to VDE guidelines
